Single Way Tunnel Type AGV Automated Guided Vehicle Robot ±10mm Guiding Accuracy

Name: Single Way Tunnel Type AGV Automated Guided Vehicle Robot 10mm Guiding Accuracy
Brand: CASUN
Price: 1 USD

Brand Name : CASUN

Model Number : QF1400V2

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Certification : CE

AGV : Automated Guided Vehicle

Model : QF1400V2

Guiding Accuracy : ±10mm

Travel Speed : 0-35m/min(Or Customizing)

Load Capacity : 500-1500kg

Body Height : 168mm

Charging Method : Automatic or Manual

Life Time : > 10 years

Contact Now

Magnetic Guidance Single Way Tunnel Type AGV Automated Guided Vehicle Lurking Under the Trolley

1. Product Description:

The one-way tunnel AGV lurks under the trolley and uses the tow bar to automatically lift, hook or drop the trolley. Compact structure and flexible running, it is widely used in many industries such as automobiles, home appliances, electrical appliances and electronics.

Single Way Tunnel Type AGV Automated Guided Vehicle Robot ±10mm Guiding Accuracy

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3. Specifications:

Product name	Single Way Tunnel Type AGV (QF1400V2)
Model	QF1400V2
Dimensions	L1400W420H290(mm)
Load capacity	500Kg/800kg
Minimum turning radius	min 600mm
Guidance	Magnetic guidance
Travel Direction	Forward, turn left and right, branch
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

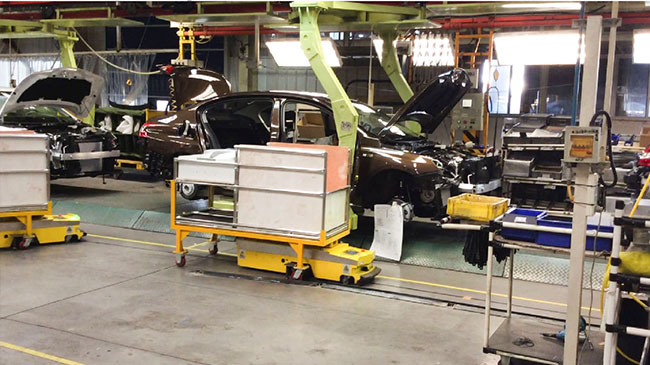

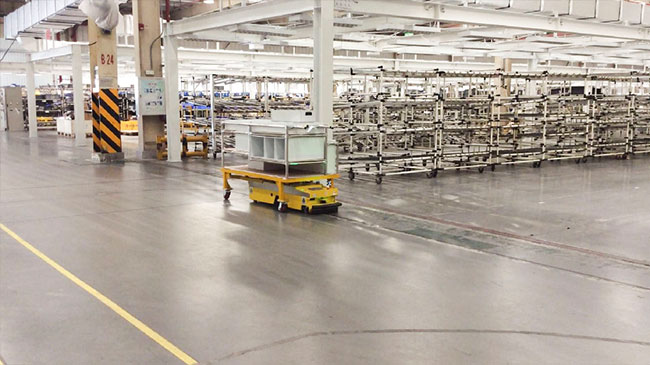

4. Photo:

Single Way Tunnel Type AGV Automated Guided Vehicle Robot ±10mm Guiding Accuracy
